Back to Projects

Construction water cleaning at Bonatzbau, Stuttgart

As part of the modernization work in the Bonatzbau, the historic part of Stuttgart's main railway station, ZÜBLIN Umwelttechnik is providing a system for cleaning construction water. The historic Bonatzbau in Stuttgart is currently being completely modernized. Access to the tracks of the new platform hall, two new levels for stores and a modern four-star hotel are being created.

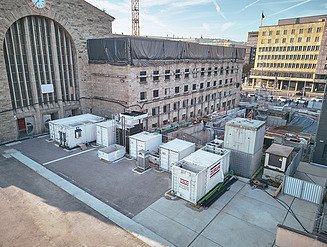

  • Picture of the construction water purification plant at the Bonatzbau ©ZUT
    Picture of the construction water purification plant at the Bonatzbau ©ZUT

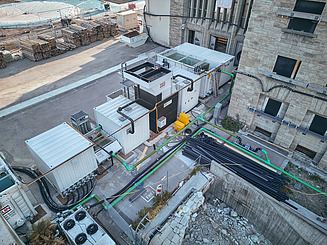

  • Close-up of the construction water purification system ©ZUT
    Close-up of the construction water purification system ©ZUT

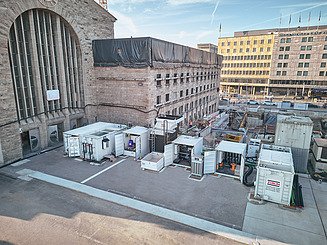

  • Picture of the construction water purification plant at the Bonatzbau ©ZUT
    Picture of the construction water purification plant at the Bonatzbau ©ZUT

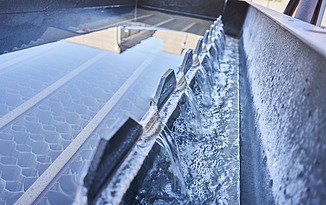

  • Close-up of the draining clear water at the lamella separator © ZUT
    Close-up of the draining clear water at the lamella separator © ZUT
Location
Stuttgart
Client
Ed. Züblin AG
Parameters
Flow rate 5 L/s
Special features
Use of the complete modular units for construction water treatment
Performance period
since July 2023

Components

  • Settling tank 30 m³
  • Lamella separator
  • BW-COMPACT (modular system)
  • BW-FLOCC (modular system)
  • BW-AUTOMATIC (modular system)
  • NEUTRA-COMPACT (modular system)
  • pH, conductivity, temperature and turbidity measurement
  • Flow measurement in the inlet & outlet
  • PLC, fault message system, monitoring
  • Data management
