Arsenic removal from groundwater, Province of Livorno, Tuscany - Italy

The compact treatment plant removes dissolved arsenic from groundwater on an industrial site.

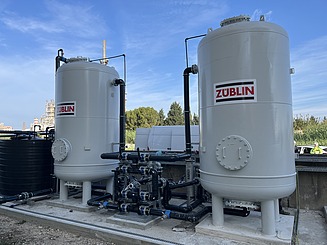

  • Groundwater treatment plant to remove dissolved iron and arsenic. ©ZUT
    Groundwater treatment plant to remove dissolved iron and arsenic. ©ZUT
Location
Rossignano, Province of Livorno, Tuscany (Italy)
Client
Chemical company
Key figures
- Flow rate: 40 m³/h
- Maximum inlet arsenic concentration: 275 µg/L
- 2 × arsenic adsorbent filters, ferric hydroxide media
Special features
- Differential-pressure monitoring protects the adsorbent stage, while upstream/downstream bag filters limit fouling and retain residual particles.
Period of service
Since November 2024

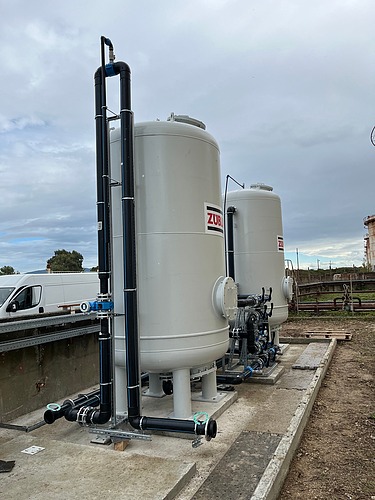

  • Filters of the treatment train.
    Filters of the treatment train. ©ZUT

Fully automated treatment system

Züblin supplied and installed a compact groundwater treatment system for arsenic removal. The 40 m³/h system is connected to existing equipment and comprises an upstream bag filter, two ferric-hydroxide adsorbent filters and another downstream bag filter. Arsenic is removed by adsorption on synthetic granular ferric hydroxide, with treated water routed to the existing final discharge line.
A maximum inlet As concentration of 275 µg/L is observed at pH 8.5–9.

Scope of services

  • Detailed engineering and documentation
  • Plant supply and installation
  • After installation, a start-up assistance was provided with experience personell
  • Supervision and process monitoring with data management
